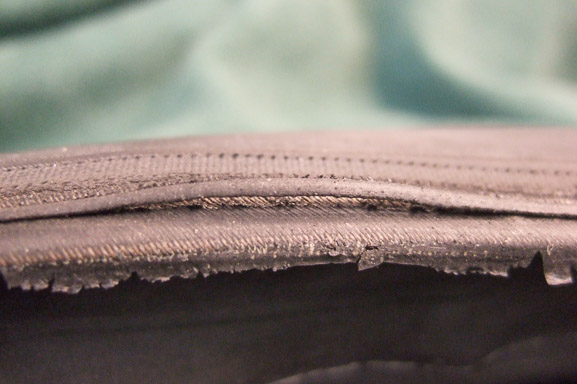

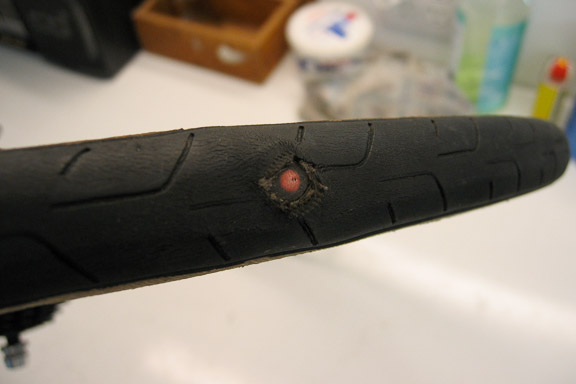

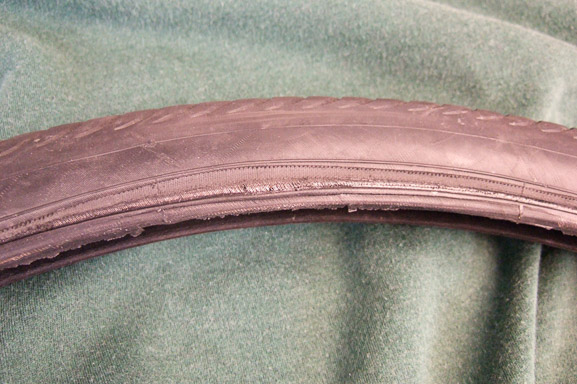

Ritchey Tom Slick K 1.4 with bulge. Note that there is no typical tire iron trauma along the bottom of the bead.
Ritchey Tom Slick K 1.4 with bulge.
Title
Ritchey Tom Slick K 1.4 with bulge.
Exposure
800, ¹⁄₂₅ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on February 2, 2009 at 19:47:04.
Ritchey Tom Slick K 1.4 with bulge. Tire off the rim.
Ritchey Tom Slick K 1.4 with bulge.
Title
Ritchey Tom Slick K 1.4 with bulge.
Exposure
800, ¹⁄₂₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on February 2, 2009 at 19:46:02.

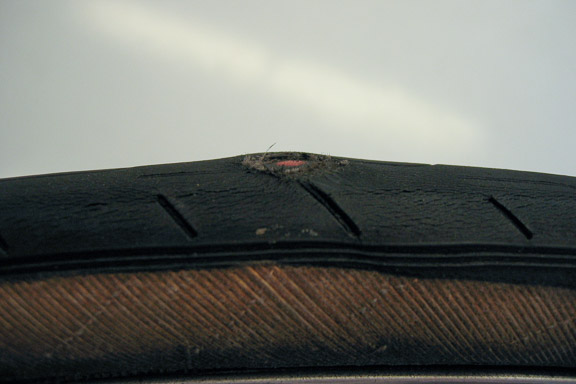

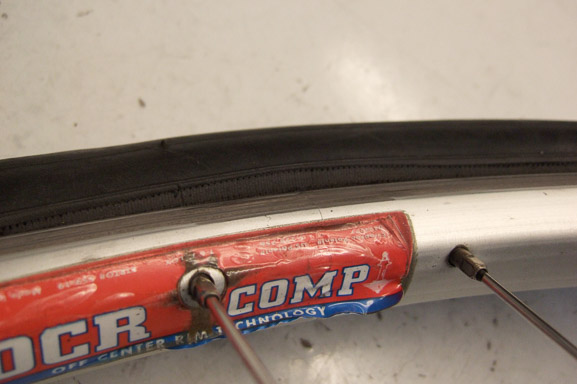

Ritchey Tom Slick K 1.4 with bulge. Tire is inflated to about 75 psi. The bulge cannot yet be felt while riding, but it is visible.
Ritchey Tom Slick K 1.4 with bulge.
Title
Ritchey Tom Slick K 1.4 with bulge.
Exposure
400, ¹⁄₁₀₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on February 1, 2009 at 16:55:22.
Tire identified.
Tire identified.
Title
Tire identified.
Exposure
800, ¹⁄₈₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on October 28, 2008 at 17:42:15.

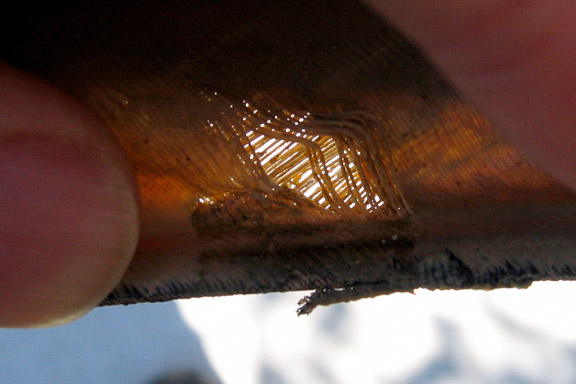

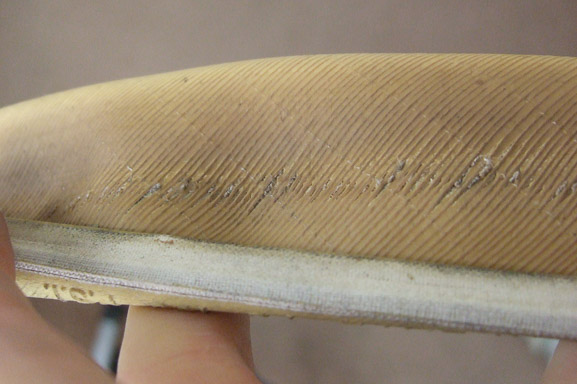

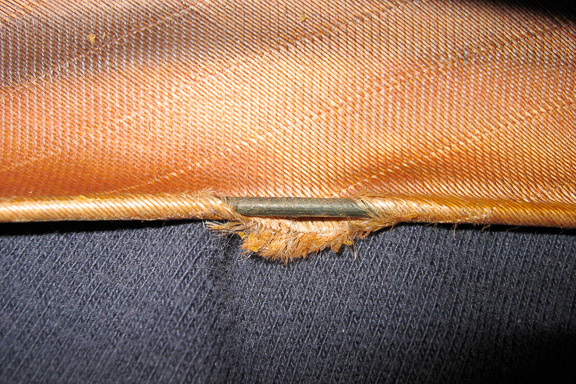

Interior or tire with busted cords.
Interior or tire with busted cords.
Title
Interior or tire with busted cords.
Exposure
800, ¹⁄₈₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on October 28, 2008 at 17:41:57.

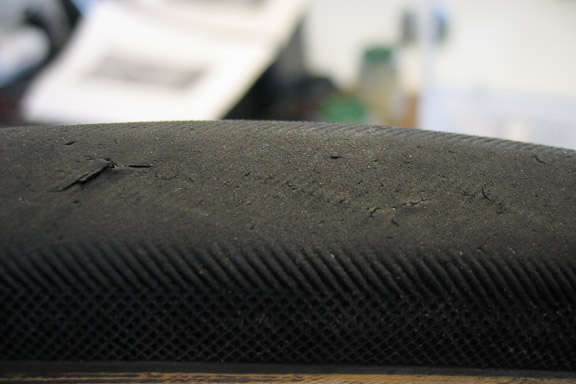

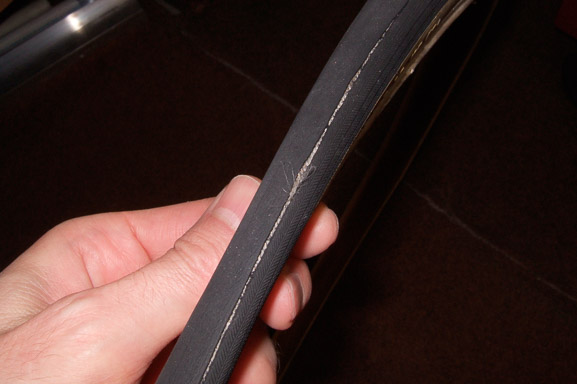

Exterior of tire showing defect and broken cord. This tire has about 1000 miles on it, but it is failing long before the rubber is worn down. When inflated the tire bulges where it is held in the picture.
Exterior of tire showing defect and broken cord.
Title
Exterior of tire showing defect and broken cord.
Exposure
200, ¹⁄₁₀₀ sec at f/8.0
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on October 28, 2008 at 08:55:22.

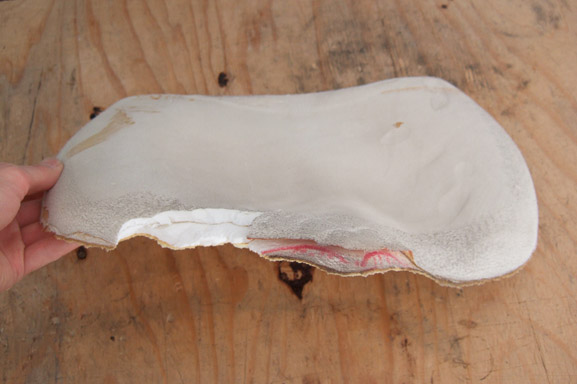

Top two layers of my Gold Rush seat cushion. The foam is all crushed from use.
Top two layers of my Gold Rush seat cushion.
Title
Top two layers of my Gold Rush seat cushion.
Exposure
200, ¹⁄₁₆₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on September 28, 2008 at 16:07:50.

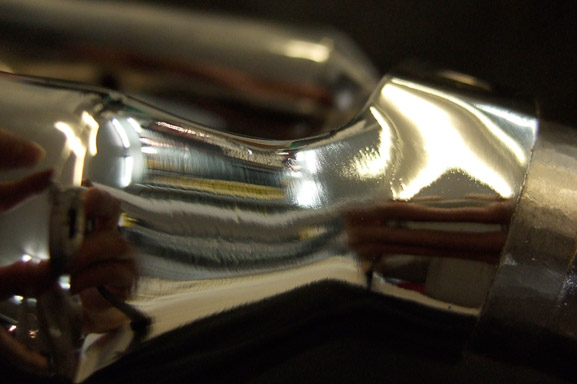

Wrinkled lug on bent fork. This was the second internally-lugged fork I tried. This fork has about 400 miles on it.
Wrinkled lug on bent fork.
Title
Wrinkled lug on bent fork.
Exposure
400, ¹⁄₁₆₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on September 23, 2008 at 20:33:30.

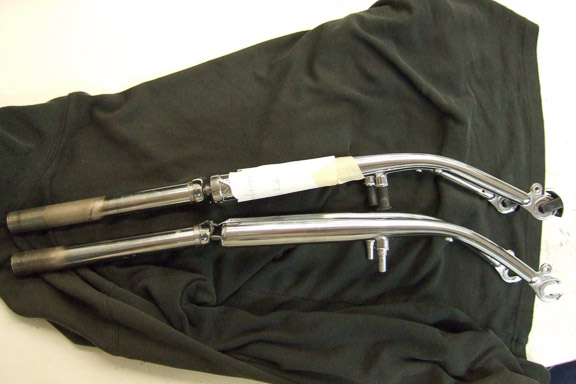

Bent internally-lugged fork. Set alongside an un-bent externally-lugged fork. The bent fork is the second such fork I tried and has about 400 miles on it when this photo was taken.
Bent internally-lugged fork.
Title
Bent internally-lugged fork.
Exposure
800, ¹⁄₈₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on September 23, 2008 at 20:32:47.

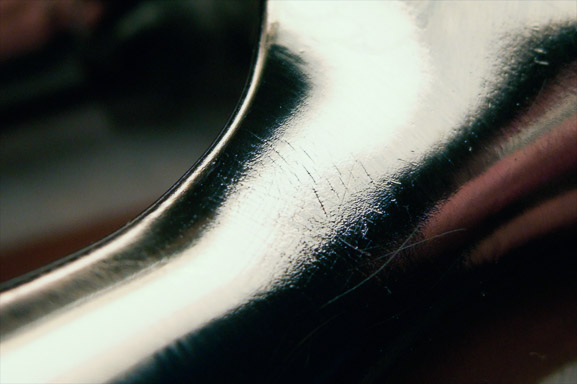

Bent Gold Rush fork, detail (2). Notice the waves and the crazed cracks at the narrowest spot. This is the view of the back side of the fork crown, left leg.
Bent Gold Rush fork, detail (2).
Title
Bent Gold Rush fork, detail (2).
Exposure
80, ¹⁄₅₀₀ sec at f/4.5
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on August 27, 2008 at 14:02:49.
Bent Gold Rush fork, detail (1). Notice the crazed cracks in the chrome coating. This is the view of the backside of the right fork leg at the narrowest part of the crown lug.
Bent Gold Rush fork, detail (1).
Title
Bent Gold Rush fork, detail (1).
Exposure
80, ¹⁄₃₂₀ sec at f/4.5
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on August 27, 2008 at 14:02:03.

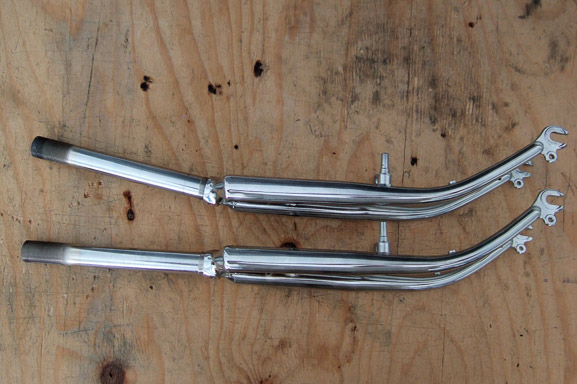

Two GR forks; different rake angles (1). The top fork was the bent fork shown in the prior photo that has been removed from the bike. Below is an otherwise identical fork that is not bent.
Two GR forks; different rake angles (1).
Title
Two GR forks; different rake angles (1).
Exposure
400, ¹⁄₁₀₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on August 27, 2008 at 12:00:37.

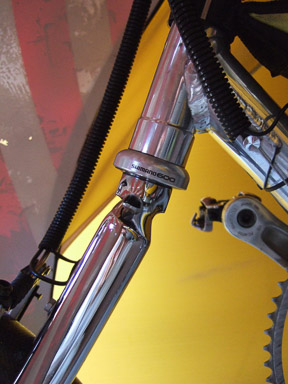

Bent fork. This fork has bent at the thinnest part of the crown on both legs. The fork legs should be in-line with the head tube.
Symptoms of a bent fork are (1) heel striking the ground more frequently in corners, (2) front wheel mud-flap dragging more frequently over debris and bumps, and (3) an increasing reluctance for the bike to corner predictably at greater lean angles.
If your fork looks like this, it is bent and should be replaced.
Bent fork.
Title
Bent fork.
Exposure
800, ¹⁄₆₄₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on August 16, 2008 at 09:57:03.
Valve/tube separation. Tube is inflated and unconstrained.
Valve/tube separation. Tube is inflated and unconstrained.
Title
Valve/tube separation. Tube is inflated and unconstrained.
Exposure
800, ¹⁄₈₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on July 28, 2008 at 19:51:47.

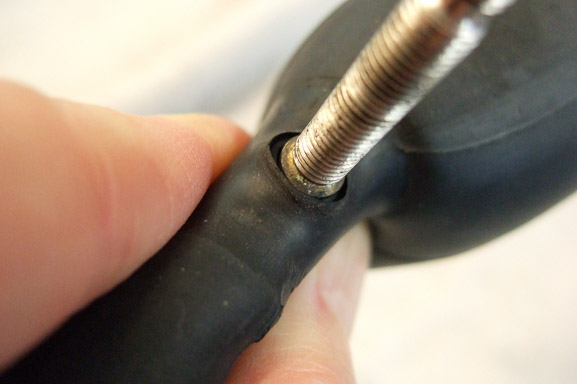

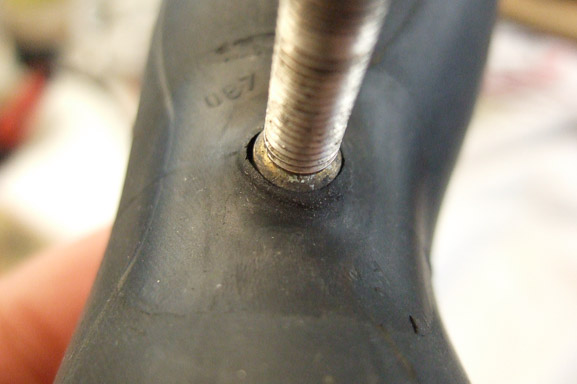

Valve separating from tube, but there is no leaking. This was a strange tube. It went flat on me while I was descending Page Mill Rd. There was no noise, just a softening tire, then flat, probably over a few minutes.
When I re-inflated the tube it held air. I have this tube hanging in my garage, inflated and bulging, for several days now with no apparent loss of air.
I'm suspicious that this gap at the valve leaks intermittently. I've tried wiggling the valve stem, but this doesn't cause any leaking. The only thing I can't easily simulate in the shop is to apply heat as if it were on a wheel with a hot rim. (When the tire went flat on the Page Mill descent I singed my fingertips and had to wait several minutes before I could touch the rim.
Valve separating from tube, but there is no leaking.
Title
Valve separating from tube, but there is no leaking.
Exposure
800, ¹⁄₁₀₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on July 28, 2008 at 19:51:25.

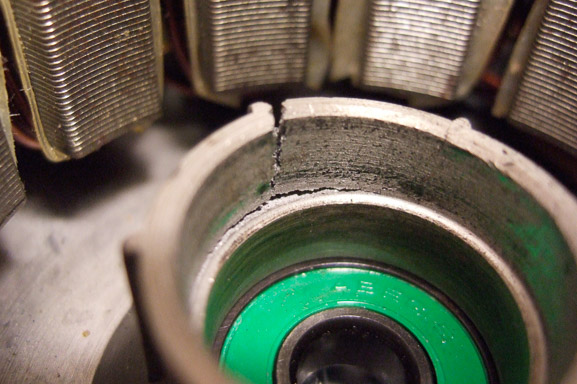

Cracked bearing cup on the motor housing.
Cracked bearing cup on the motor housing.
Title
Cracked bearing cup on the motor housing.
Exposure
800, ¹⁄₂₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on July 14, 2008 at 22:11:53.

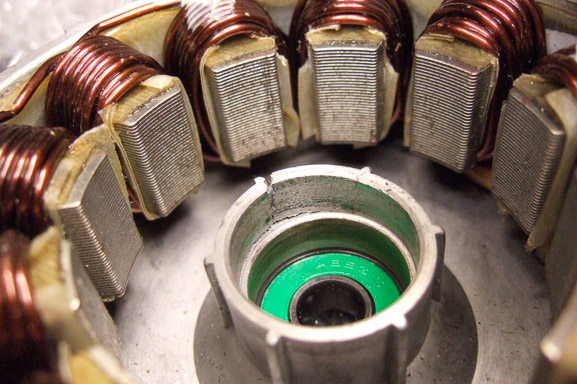

Motor stator and case showing cracked bearing cup. The bearing cup cracked while I was trying to remove the inside bearing for replacement. Oops.
Motor stator and case showing cracked bearing cup.
Title
Motor stator and case showing cracked bearing cup.
Exposure
800, ¹⁄₁₆₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on July 14, 2008 at 22:09:52.

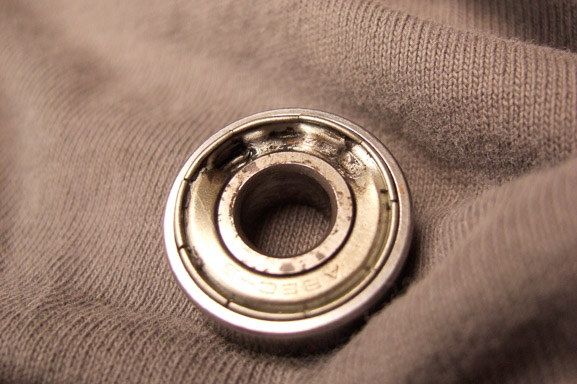

Burnt 608 bearing. This came out of a Transmagnetics 4" motor.
Burnt 608 bearing.
Title
Burnt 608 bearing.
Exposure
400, ¹⁄₁₆₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on July 14, 2008 at 22:08:04.

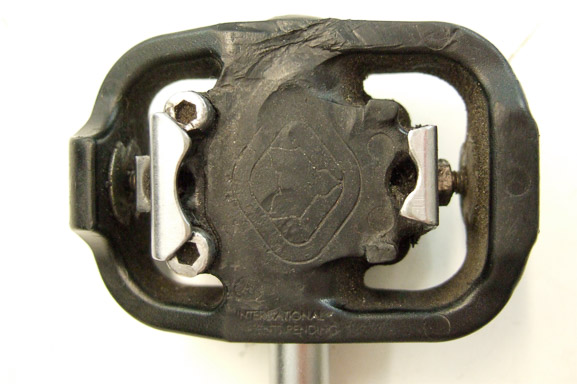

WTB clipless pedal with worn hardware. This pedal has about 10k miles on it.
WTB clipless pedal with worn hardware.
Title
WTB clipless pedal with worn hardware.
Exposure
800, ¹⁄₆₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on June 9, 2008 at 19:30:07.

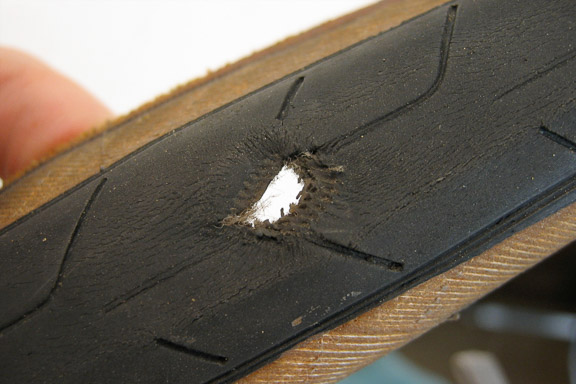

Post-blowout of a worn tire. The tire is a Vredestein Fortezza.
Post-blowout of a worn tire.
Title
Post-blowout of a worn tire.
Exposure
800, ¹⁄₄₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on June 2, 2008 at 20:32:31.

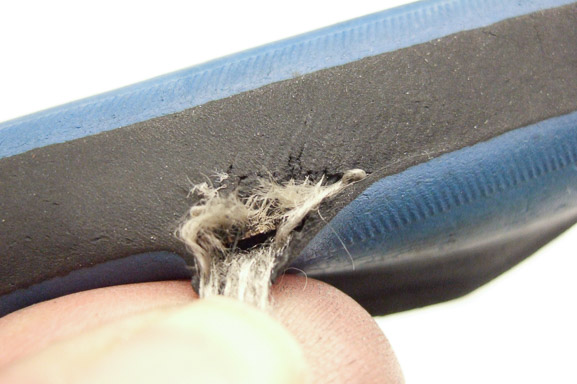

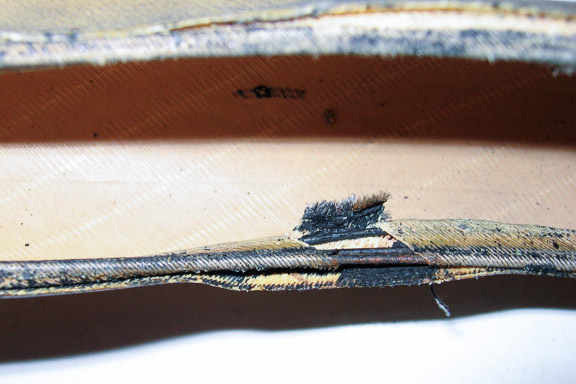

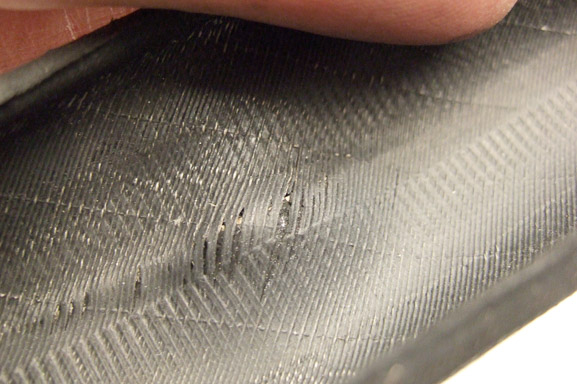

Inside of tire at blowout location.
Inside of tire at blowout location.
Title
Inside of tire at blowout location.
Exposure
800, ¹⁄₂₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on June 2, 2008 at 20:32:09.

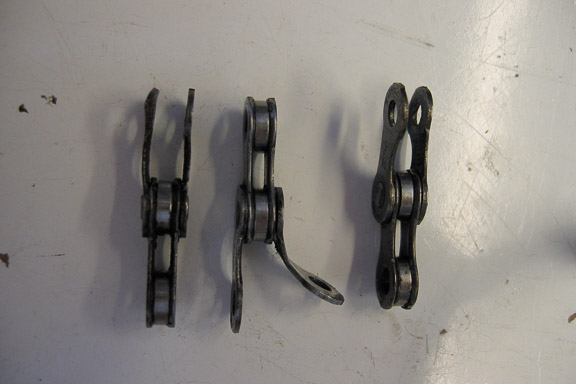

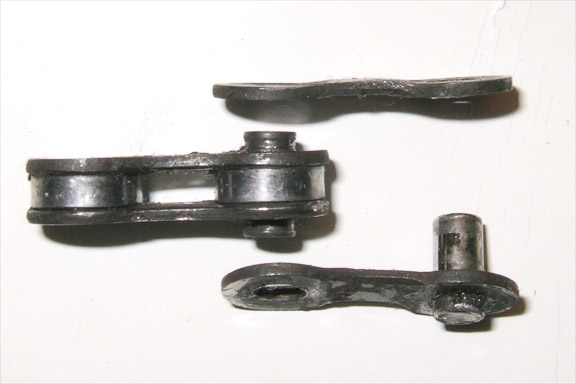

Broken chain - both sideplates pulled off together. Both sideplates of this chain broke free together where the pin (center) is still contained within the inside link. (The pin on the outer plate was pushed out partially by a chain tool when removing the link.)
Broken chain - both sideplates pulled off together.
Title
Broken chain - both sideplates pulled off together.
Exposure
200, ¹⁄₁₀₀ sec at f/8.0
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on May 17, 2008 at 20:07:16.

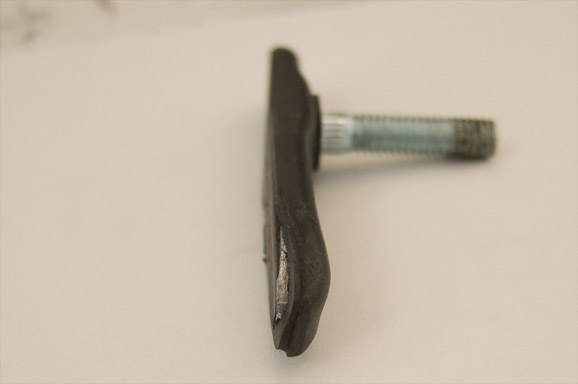

Koolstop brake pad, worn to the metal.
Koolstop brake pad, worn to the metal.
Title
Koolstop brake pad, worn to the metal.
Exposure
200, ¹⁄₂₀₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on March 23, 2008 at 16:38:40.

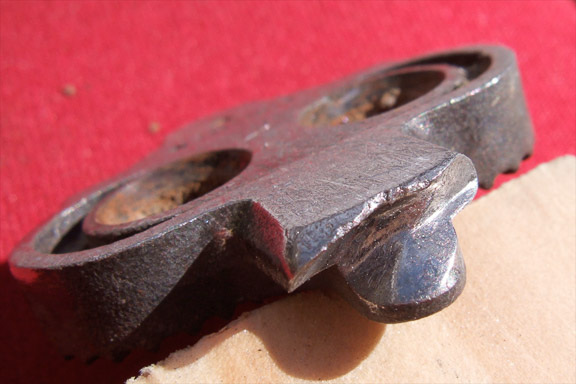

Worn rear end of SPD cleat.
Worn rear end of SPD cleat.
Title
Worn rear end of SPD cleat.
Exposure
80, ¹⁄₅₀₀ sec at f/5.6
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on March 2, 2008 at 11:52:54.

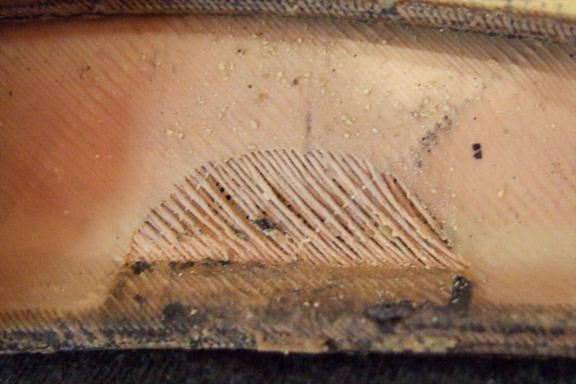

Primo Comet inside rubber wear.
Primo Comet inside rubber wear.
Title
Primo Comet inside rubber wear.
Exposure
800, ¹⁄₁₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on December 16, 2007 at 17:24:47.

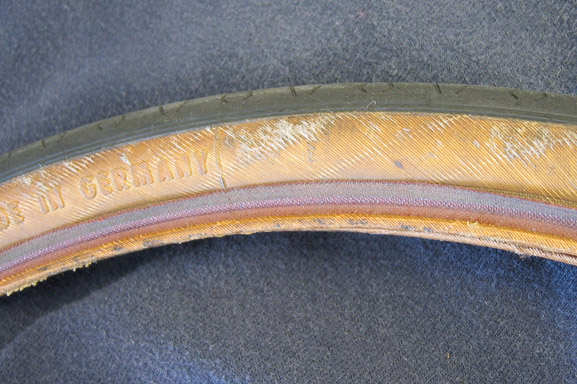

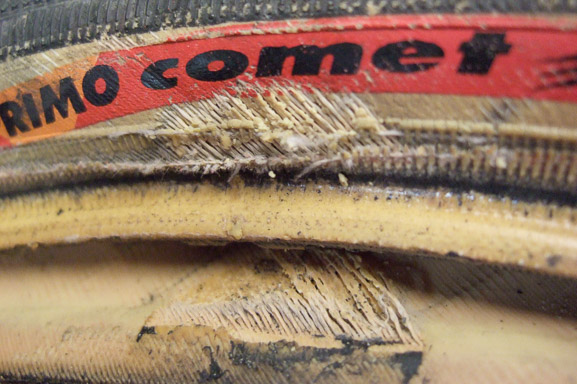

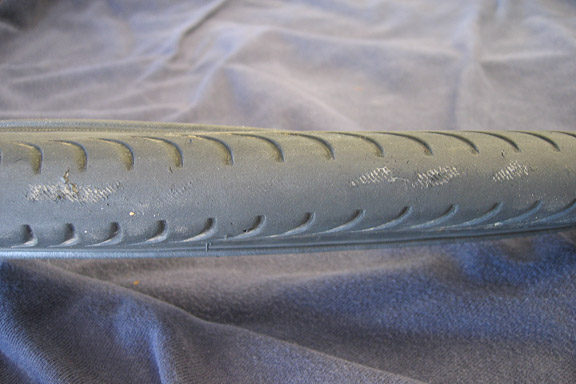

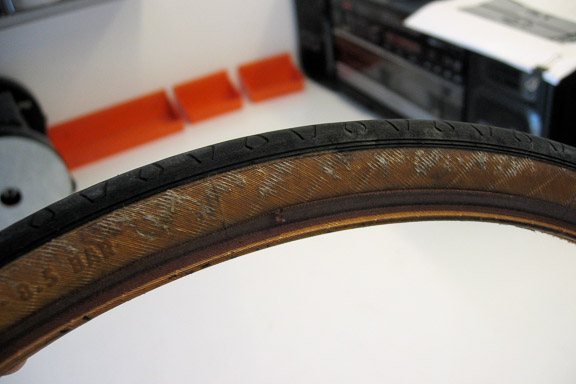

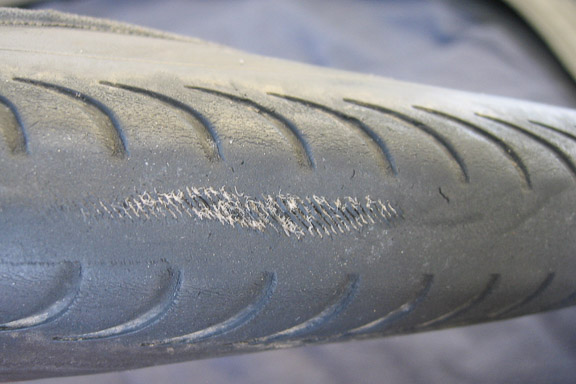

Primo Comet with worn sidewalls The rubber is wearing off even on the inside!
Primo Comet with worn sidewalls
Title
Primo Comet with worn sidewalls
Exposure
800, ¹⁄₆₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on December 16, 2007 at 17:23:31.

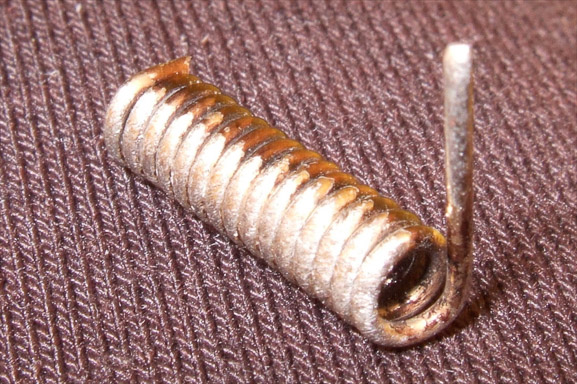

Spring that got stuck in my tire. The long straight end got stuck in my tire. It made the oddest scraping sound against the inside of my fender.
Spring that got stuck in my tire.
Title
Spring that got stuck in my tire.
Exposure
200, ¹⁄₁₅ sec at f/8.0
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on December 16, 2007 at 14:26:46.

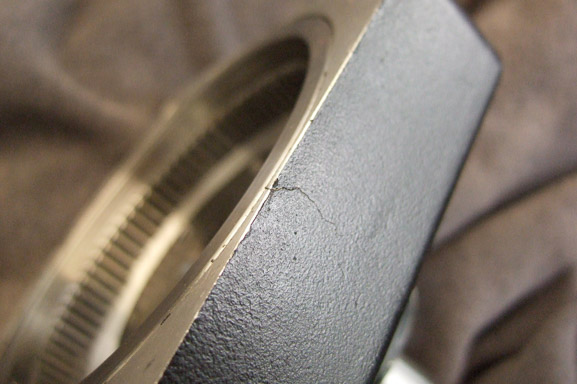

Cracked block of Cyclone planetary gearbox. The block is made of aluminum, and is very thin at the crack location.
Cracked block of Cyclone planetary gearbox.
Title
Cracked block of Cyclone planetary gearbox.
Exposure
800, ¹⁄₈₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on December 1, 2007 at 17:30:52.

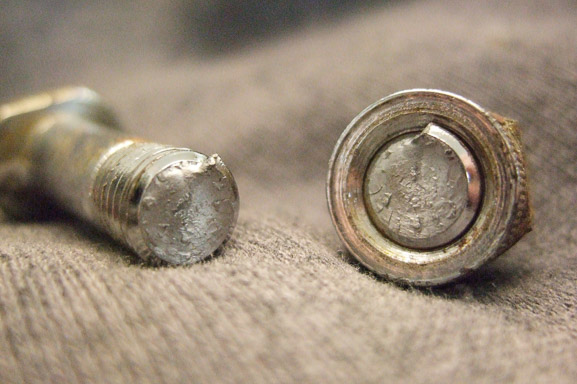

Broken seat bolt faces
Broken seat bolt faces
Title
Broken seat bolt faces
Exposure
1600, ¹⁄₁₀₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on December 1, 2007 at 17:27:16.

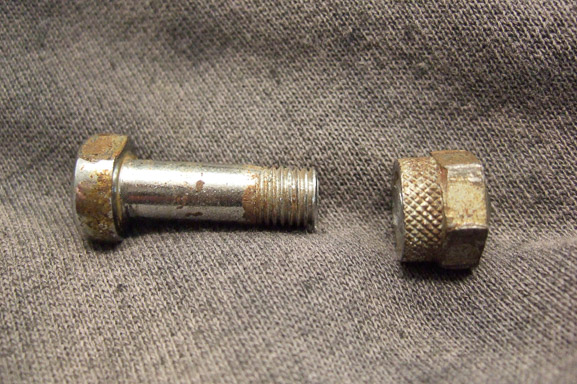

Broken seat bolt. This bolt was off an old ca. 1982 Raleigh Record.
Broken seat bolt.
Title
Broken seat bolt.
Exposure
800, ¹⁄₅₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on December 1, 2007 at 17:25:14.

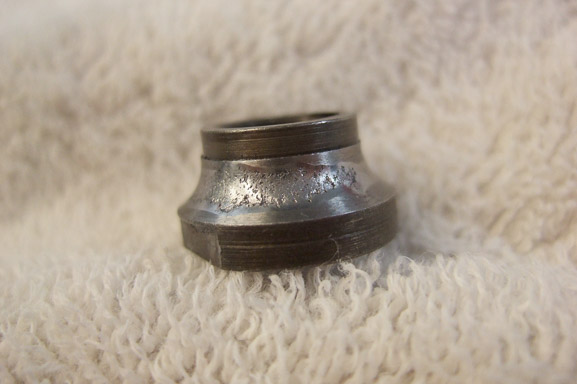

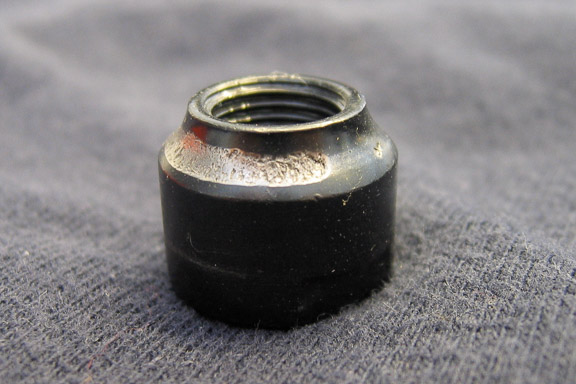

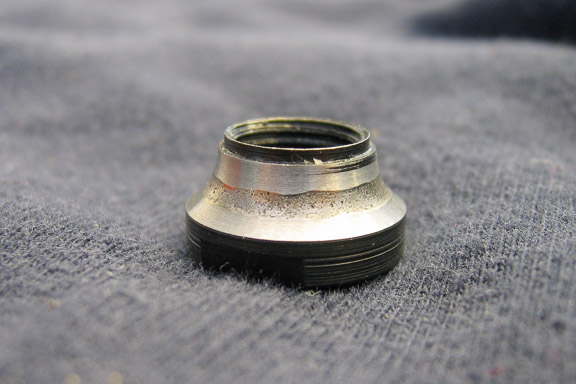

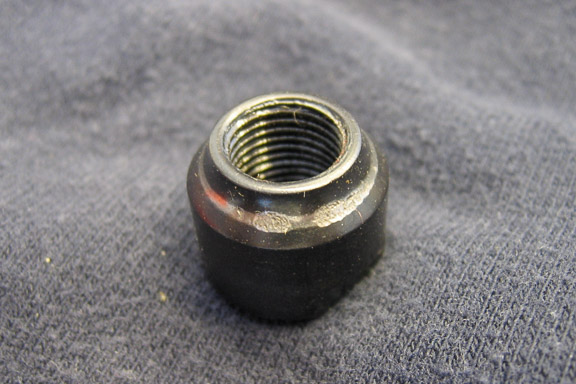

Pitted cone, right rear.
Pitted cone, right rear.
Title
Pitted cone, right rear.
Exposure
400, ¹⁄₁₀₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on November 20, 2007 at 18:14:55.

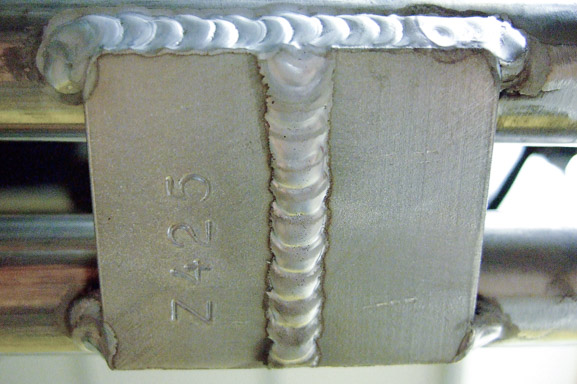

Plate detail showing serial number. I later filed down the weld bead down the middle of this plate. (It's actually two plates welded together.)
Plate detail showing serial number.
Title
Plate detail showing serial number.
Exposure
1600, ¹⁄₅₀ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on October 26, 2007 at 19:32:09.

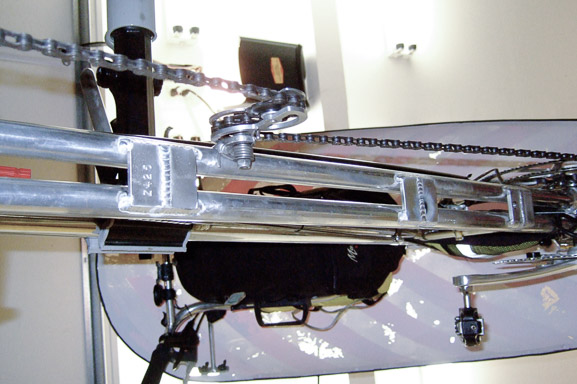

New plates welded to replace the broken tabs. A repaired part, these plates should add stiffness to the frame, keeping the two paired tubes working as one unit. The welds were not heat-treated, but if they crack again, I can weld them up again. The tabs lasted about 15k miles before they cracked through, and they were much weaker.
New plates welded to replace the broken tabs.
Title
New plates welded to replace the broken tabs.
Exposure
800, ¹⁄₁₂₅ sec at f/2.8
Camera and Lens
FUJIFILM FinePix F10
Datetime
Image captured on October 26, 2007 at 19:30:24.

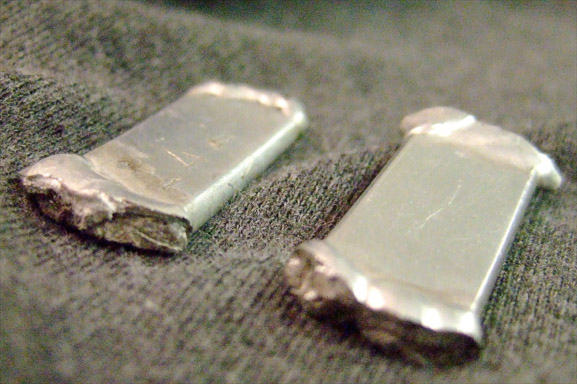

Broken tabs that connect bottom tubes on the Gold Rush.
Broken tabs that connect bottom tubes on the Gold Rush.
Title
Broken tabs that connect bottom tubes on the Gold Rush.

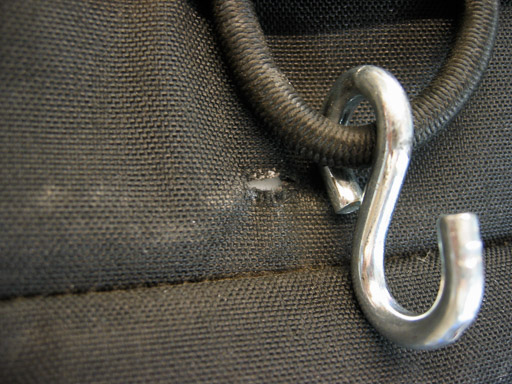

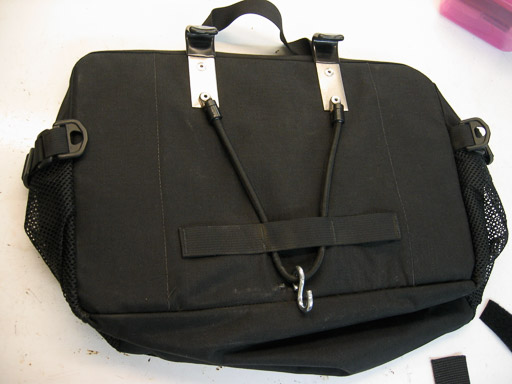

Campus Pannier rear panel detail, showing hole. Showing where blunt end of hook wore hole in material.
Campus Pannier rear panel detail, showing hole.
Title
Campus Pannier rear panel detail, showing hole.
Exposure
100, ⅛ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 14, 2007 at 20:33:54.

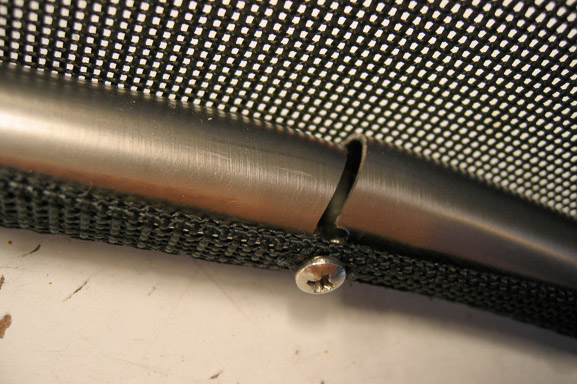

Pursuit Ti seat frame crack at screw hole.
Pursuit Ti seat frame crack at screw hole.
Title
Pursuit Ti seat frame crack at screw hole.
Exposure
100, ¹⁄₁₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 11, 2007 at 20:18:26.

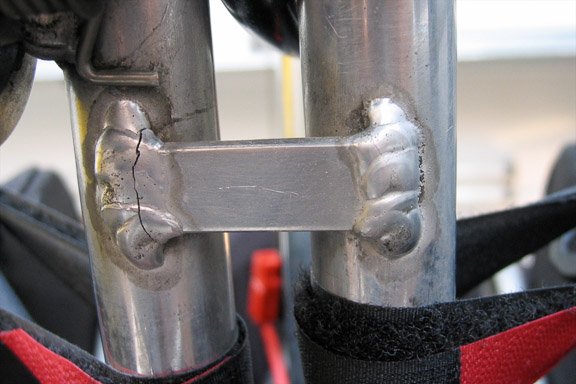

Cracked tab on Gold Rush. This is the tab next to the intermediate idler. The left side is separated, but a hairline crack is just starting on the upper end of the weld on the right side.
Cracked tab on Gold Rush.
Title
Cracked tab on Gold Rush.
Exposure
100, ¹⁄₁₀₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on April 8, 2007 at 12:47:52.

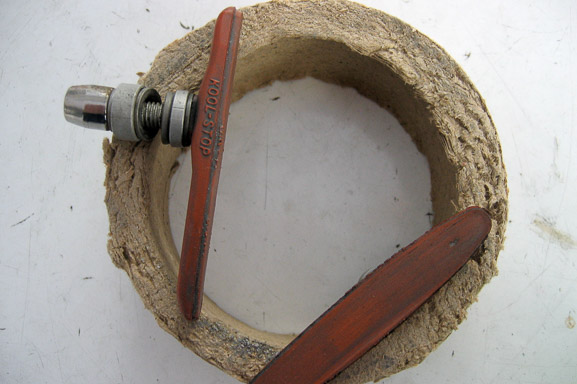

Kook-Stop Salmon brake pads, 80% worn.
Kook-Stop Salmon brake pads, 80% worn.
Title
Kook-Stop Salmon brake pads, 80% worn.
Exposure
100, ¹⁄₁₅ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on March 6, 2007 at 16:56:27.

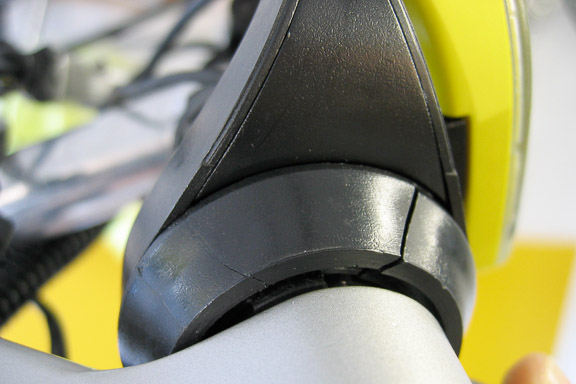

Cracked ring on left-handed thumb throttle.
Cracked ring on left-handed thumb throttle.
Title
Cracked ring on left-handed thumb throttle.
Exposure
100, ¹⁄₃₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on March 6, 2007 at 16:54:59.

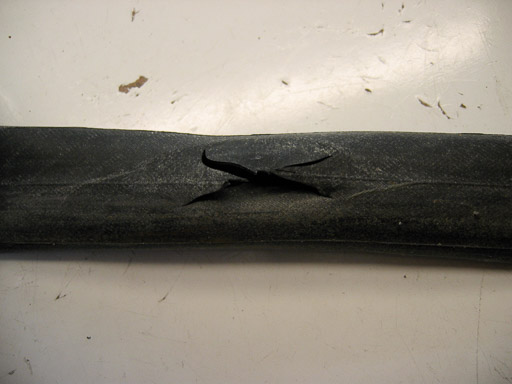

Pinch flat through the tire I rode through a pothole with a 2-3" lip. Pinch flat only on one side of tire, but rim punctured both tube and tire. Tire deflated in about 2 seconds. The white thing in the hole is a Tyvek boot.
Pinch flat through the tire

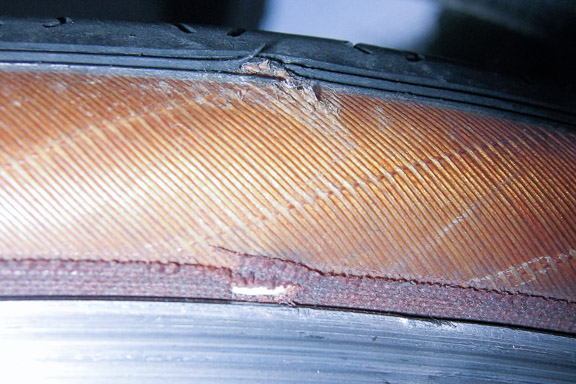

Title
Pinch flat through the tire
Exposure
100, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on January 7, 2007 at 16:58:18.

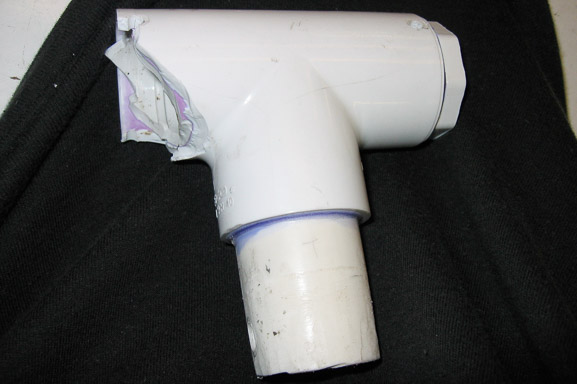

Broken "T" of Pursuit fairing mount. This member is intentionally the weakest part of the fairing mount as it is the easiest to fabricate. The break was occurred during a medium-speed spill.
Broken "T" of Pursuit fairing mount.
Title
Broken "T" of Pursuit fairing mount.
Exposure
100, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on December 19, 2006 at 19:10:21.

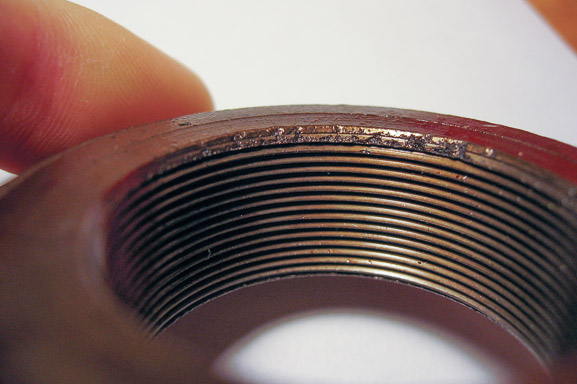

Poorly formed metal in the threads of a freewheel. This one is more a failure of manufacturing than of use.
Poorly formed metal in the threads of a freewheel.
Title
Poorly formed metal in the threads of a freewheel.
Exposure
100, ¹⁄₁₂₅ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on December 13, 2006 at 09:59:49.

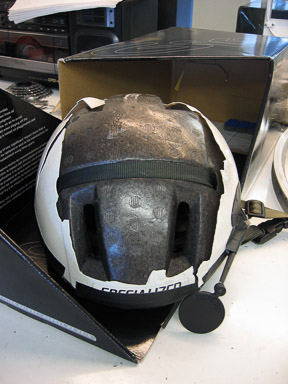

Worn out helmet I bought this helmet in February 1993 and have worn it daily when commuting for 10 years. The outer shell is completely broken down by uV rays, but the styrofoam appears still to be in good shape. The Third-Eye mirror is held together with tape and glue.
Worn out helmet
Title
Worn out helmet
Exposure
100, ¹⁄₂₅ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on July 29, 2006 at 19:19:35.
Damaged races on a Shimano 105 rear hub. The wheel built around this hub sat idle for several months without use. The damage appears to be cosmetic and cannot be felt with a fingernail, probably some stain due to bearing corrosion from moisture rather than scoring or microwelds.
Damaged races on a Shimano 105 rear hub.
Title
Damaged races on a Shimano 105 rear hub.
Exposure
100, ¹⁄₃₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on July 29, 2006 at 19:16:05.
Worn pulleys from Gold Rush intermediate cage. The pulleys themselves are in good shape, but the plastic bushing at the center has seen better days.
Worn pulleys from Gold Rush intermediate cage.
Title
Worn pulleys from Gold Rush intermediate cage.
Exposure
100, ¹⁄₁₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on July 29, 2006 at 19:12:11.

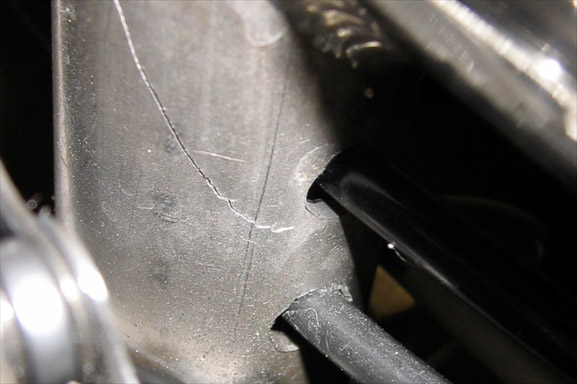

Rotator Ti Pursuit frame: right-hand side crack, lower end detail It's clear from this image the this crack did not originate at the cable housing hole.
Rotator Ti Pursuit frame: right-hand side crack, lower end detail
Title
Rotator Ti Pursuit frame: right-hand side crack, lower end detail
Exposure
50, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 25, 2006 at 14:05:33.

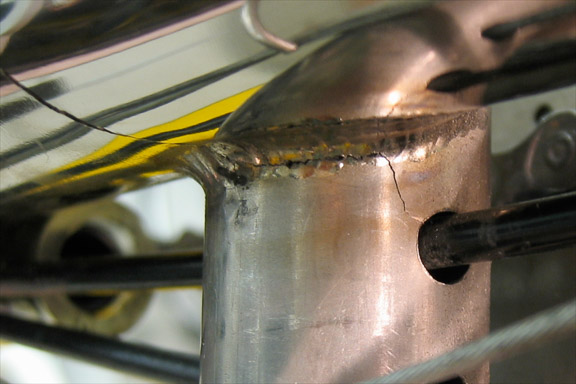

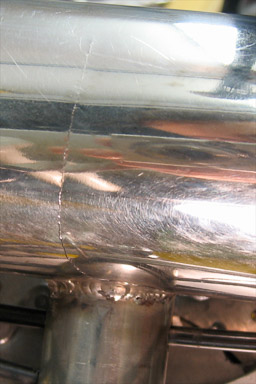

Rotator Ti Pursuit frame: right-hand side crack at weld I suspect the crack originated at the void in the weld.
Rotator Ti Pursuit frame: right-hand side crack at weld
Title
Rotator Ti Pursuit frame: right-hand side crack at weld
Exposure
50, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 25, 2006 at 14:04:03.
Rotator Ti Pursuit frame: left-hand side crack, weld crossing and lower end Voids can be seen in several places along the crack where it passes through the weld. I suspect that this crack originated at the weld.
The crack that appears to be rising to the right of the weld is the reflection of the lower crack in the main tube. The crack rising to the left is the continuation of the same crack.
Rotator Ti Pursuit frame: left-hand side crack, weld crossing and lower end
Title
Rotator Ti Pursuit frame: left-hand side crack, weld crossing and lower end
Exposure
50, ⅛ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 25, 2006 at 13:56:17.
Rotator Ti Pursuit frame: left-hand side crack The lower end of the crack is at the hole for the derailer cable housing at the lower right of the image.
Rotator Ti Pursuit frame: left-hand side crack
Title
Rotator Ti Pursuit frame: left-hand side crack
Exposure
50, ¹⁄₁₅ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 25, 2006 at 13:47:02.
Rotator Ti Pursuit frame: right-hand side crack
Rotator Ti Pursuit frame: right-hand side crack
Title
Rotator Ti Pursuit frame: right-hand side crack
Exposure
50, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 25, 2006 at 13:34:43.
Tube after an unattended blowoff. Note the star-burst tear.
Tube after an unattended blowoff.
Title
Tube after an unattended blowoff.
Exposure
100, ¹⁄₅₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on June 13, 2006 at 19:37:54.
Hole in tire without boot. Tire is a Continental SuperSport 100, 28x630 size.
Hole in tire without boot.
Title
Hole in tire without boot.
Exposure
100, ¹⁄₂₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on May 31, 2006 at 20:29:08.
Tire starting to bulge at hole. Continental SuperSport 100, 28x630 size.
Tire starting to bulge at hole.
Title
Tire starting to bulge at hole.
Exposure
100, ¹⁄₈₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on May 31, 2006 at 20:27:34.
Mr. Tuffy tire liner acting as a boot. I have been riding the tire like this for the last 600 miles. The liner is starting to wear through, so it's time to discard the tire. Tire is a Continental SuperSport 100, 28x630 size.
Mr. Tuffy tire liner acting as a boot.
Title
Mr. Tuffy tire liner acting as a boot.
Exposure
100, ¹⁄₅₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on May 31, 2006 at 20:26:46.
Primo Comet with see-through sidewall. View is from the interior.
Primo Comet with see-through sidewall.
Title
Primo Comet with see-through sidewall.
Exposure
100, ¹⁄₁₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on May 29, 2006 at 10:52:23.

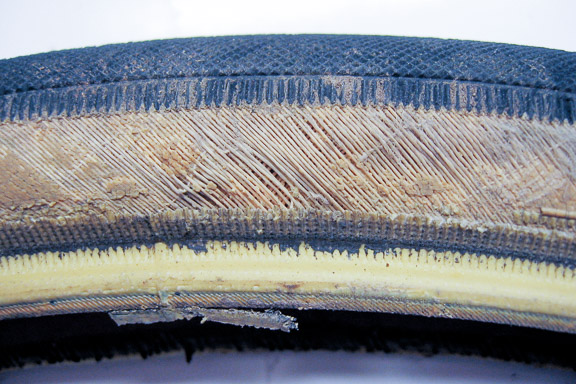

Primo Comet worn from age (3200mi, 3 years) Rubber on sidewalls is disappearing.

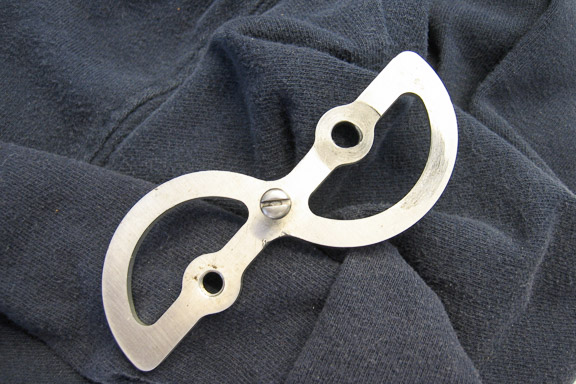

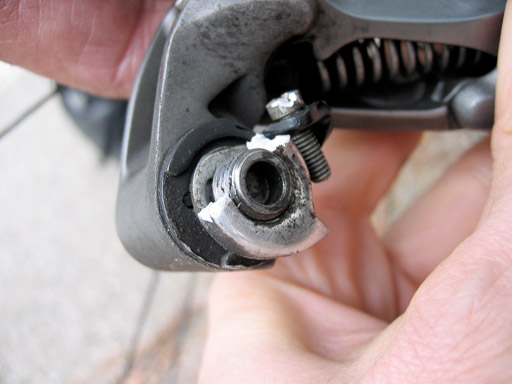

Elongated mounting hole for Gold Rush intermediate tensioner cage This cage, made of aluminum, wears primarily when this mounting hole becomes elongated. This causes the cage to twist on its mount and the chain to rub on the cage, as one can see in the picture.
Elongated mounting hole for Gold Rush intermediate tensioner cage
Title
Elongated mounting hole for Gold Rush intermediate tensioner cage
Exposure
100, ¹⁄₁₃ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:38:09.

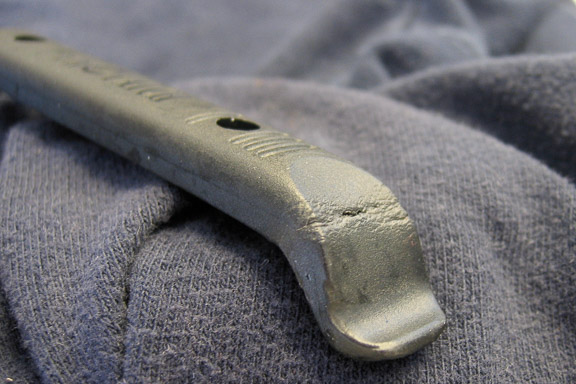

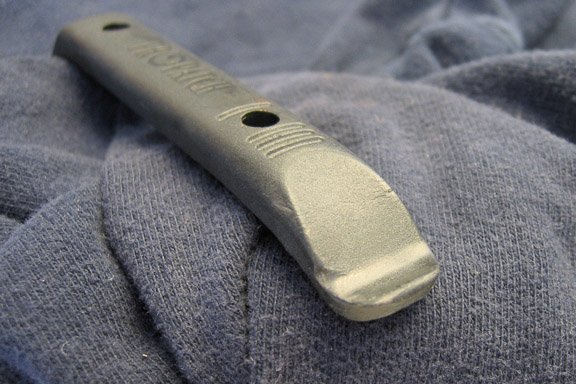

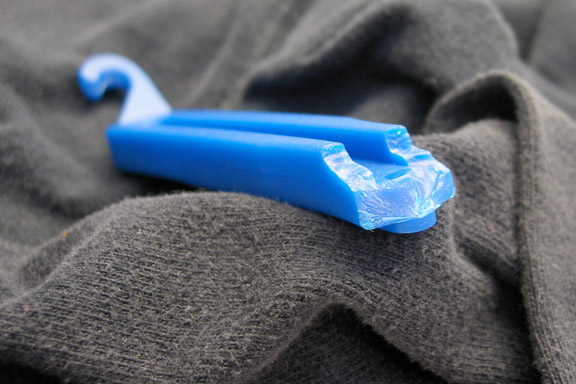

Broken tire lever
Broken tire lever
Title
Broken tire lever
Exposure
100, ¹⁄₁₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:37:20.

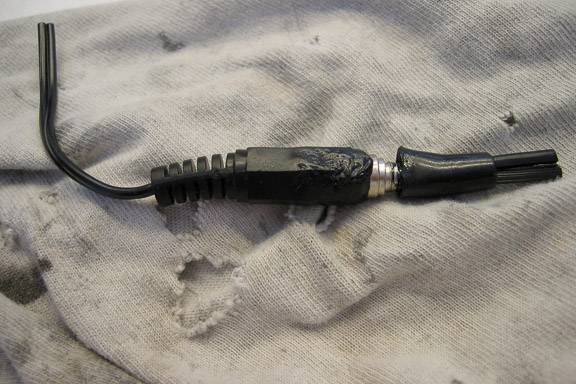

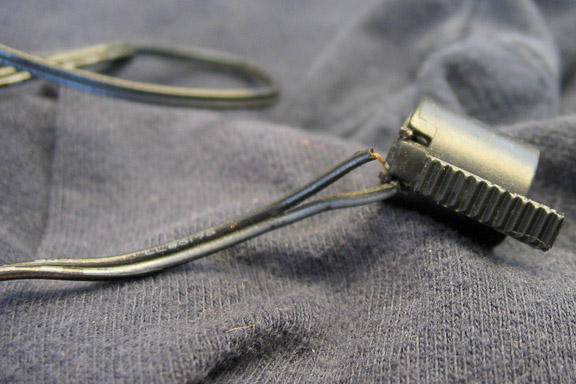

Melted battery charge connector This connector shorted out while I was charging my NiCd battery pack with a DeWalt NiCd charger. It started melting and giving off smoke after a few minutes. Fortunately, I was nearby so that I could shut it off.
Melted battery charge connector
Title
Melted battery charge connector
Exposure
100, ¹⁄₄₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:36:30.

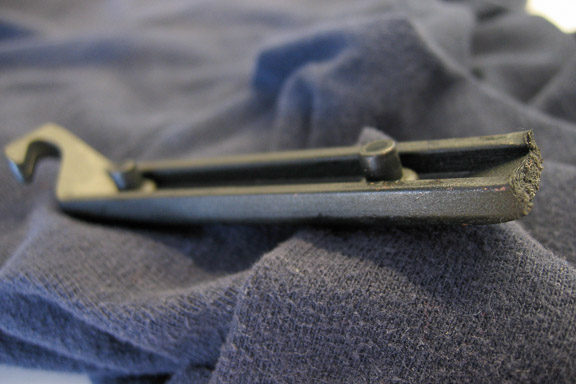

Broken tire lever
Broken tire lever
Title
Broken tire lever
Exposure
100, ⅛ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:35:44.

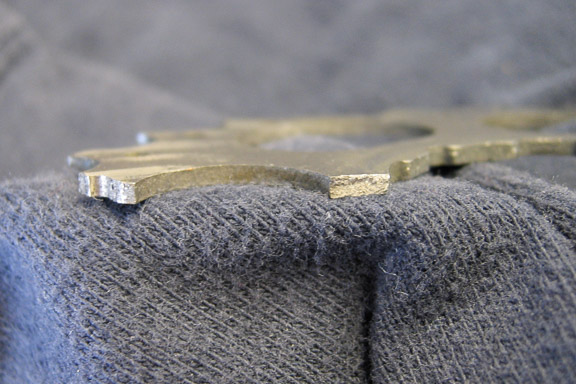

Broken Ti sprocket, edge view
Broken Ti sprocket, edge view
Title
Broken Ti sprocket, edge view
Exposure
100, ⅙ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:33:27.

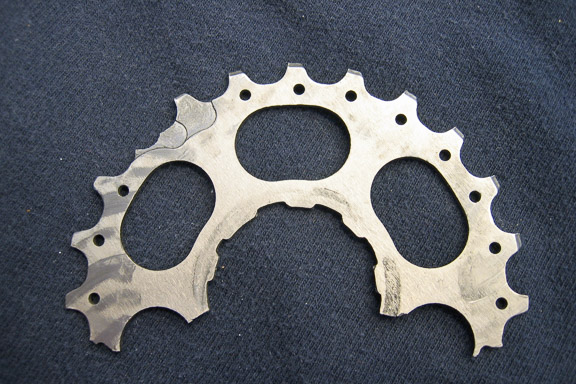

Broken Ti sprocket This sprcket broke while I was climbing Tunitas Creek Rd. The other half is somewhere on or beside the road.
Broken Ti sprocket
Title
Broken Ti sprocket
Exposure
100, ¹⁄₁₅ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:28:24.

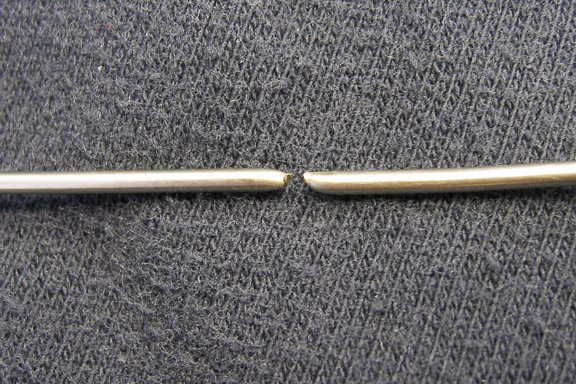

Broken DT stainless steel spoke This spoke broke in the middle of its span during a crash, when my foot went into the rear wheel.
Broken DT stainless steel spoke
Title
Broken DT stainless steel spoke
Exposure
100, ⅙ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:23:28.

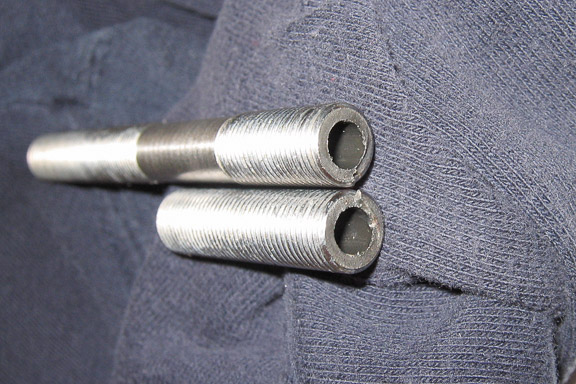

Broken rear axle (1)
Broken rear axle (1)
Title
Broken rear axle (1)
Exposure
100, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:21:36.
Pitted cone (4)
Pitted cone (4)
Title
Pitted cone (4)
Exposure
100, ⅙ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:20:04.
Pitted cone (3)
Pitted cone (3)
Title
Pitted cone (3)
Exposure
100, ⅛ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:19:13.
Pitted cone (2)
Pitted cone (2)
Title
Pitted cone (2)
Exposure
100, ¹⁄₁₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:18:12.

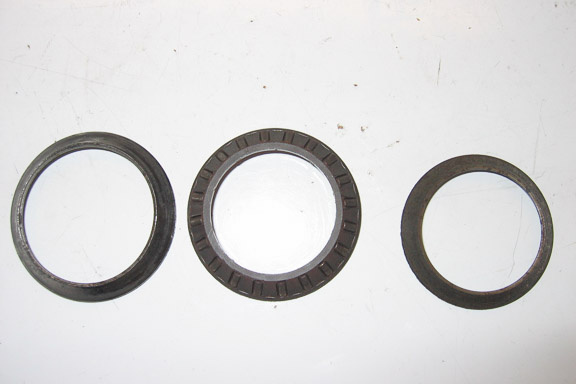

worn rollerbearings and races from Stronglight A9 headset
worn rollerbearings and races from Stronglight A9 headset
Title
worn rollerbearings and races from Stronglight A9 headset
Exposure
100, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:16:00.
near-valve puncture, inside view
near-valve puncture, inside view
Title
near-valve puncture, inside view
Exposure
100, ¹⁄₁₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:14:45.

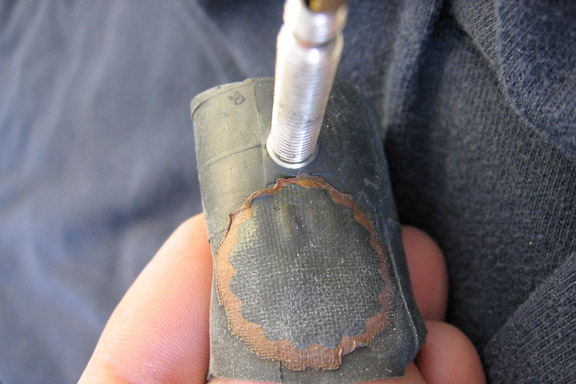

This patch, close the valve, held for a while, but not long enough
This patch, close the valve, held for a while, but not long enough
Title
This patch, close the valve, held for a while, but not long enough
Exposure
100, ¹⁄₁₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:14:10.

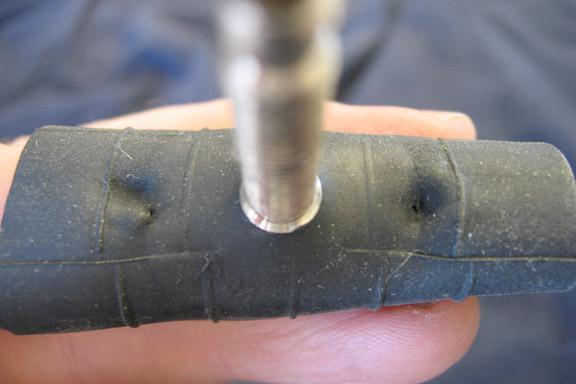

Ritchey innertubes, common failure at valve
Ritchey innertubes, common failure at valve
Title
Ritchey innertubes, common failure at valve
Exposure
100, ¹⁄₁₃ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:13:04.

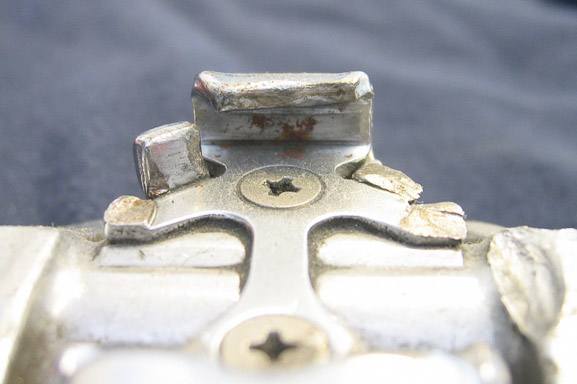

Shimano PDM-747 pedal, broken right tab, top view I got about 15k miles on this pedal before it broke.
Shimano PDM-747 pedal, broken right tab, top view
Title
Shimano PDM-747 pedal, broken right tab, top view
Exposure
100, ¹⁄₁₅ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:10:22.
Shimano PDM-747 pedal, broken tab on the right I got about 15k miles on this pedal before it broke.
Shimano PDM-747 pedal, broken tab on the right
Title
Shimano PDM-747 pedal, broken tab on the right
Exposure
100, ¹⁄₁₅ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:10:02.

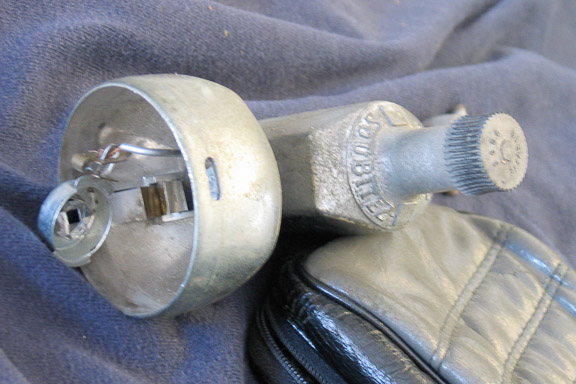

Soubitez front fork generator light The front lens of this fell out while I was riding home from work one evening. Before I could retrieve the lens, a car ran over it and crushed it into a hundred pieces. I got many years of use out of it, but it had high rolling resistance.
Soubitez front fork generator light
Title
Soubitez front fork generator light
Exposure
100, ⅛ sec at f/4.0
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:06:53.

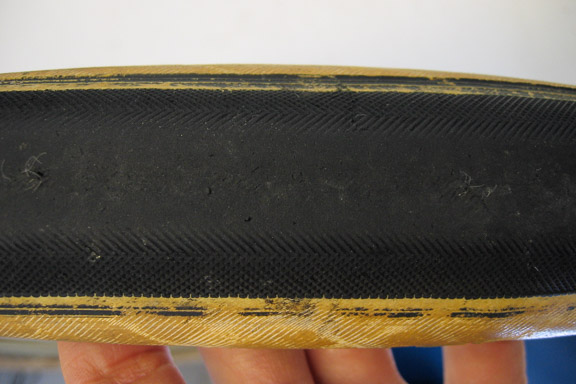

Ritchey Tom Slick 1.4x559, worn to the cords (2)
Ritchey Tom Slick 1.4x559, worn to the cords (2)
Title
Ritchey Tom Slick 1.4x559, worn to the cords (2)
Exposure
100, ⅛ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:04:49.

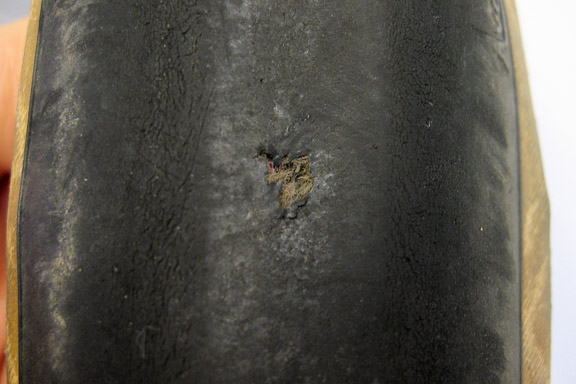

Ritchey Tom Slick 1.4x559, worn to the cords (1)
Ritchey Tom Slick 1.4x559, worn to the cords (1)
Title
Ritchey Tom Slick 1.4x559, worn to the cords (1)
Exposure
100, ¹⁄₁₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:03:52.

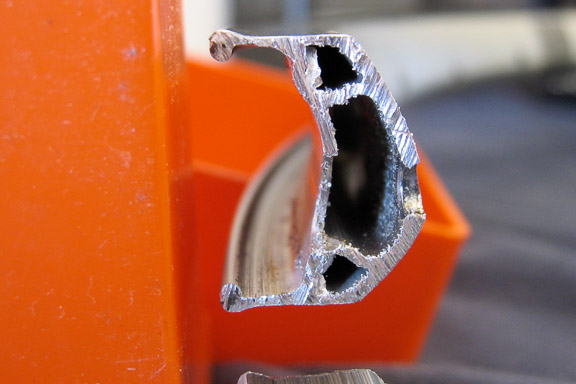

Ritchey Comp Pro rim, worn to a half millimeter thickness I got about 23k miles on this rim before removing it from service. Most of this wear occurred on about three or four rides ridden in the rain that included some long descents that required continuous or near-continuous braking.
Ritchey Comp Pro rim, worn to a half millimeter thickness
Title
Ritchey Comp Pro rim, worn to a half millimeter thickness
Exposure
100, ¹⁄₂₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 15:01:43.
Schwalbe Stelvio, 28x406, sidewall tear This one got torn by a sharp rock. I stopped using the tire when it started bulging at this tear. Unfortunately, this tire had only about 1200 miles on it before this failure.
Schwalbe Stelvio, 28x406, sidewall tear
Title
Schwalbe Stelvio, 28x406, sidewall tear
Exposure
100, ¹⁄₁₃ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:58:52.
Continental Grand Prix 28x406, cords torn at the bead Probably caused by steel irons or installing/removing the tire from the rim too many times.
Continental Grand Prix 28x406, cords torn at the bead
Title
Continental Grand Prix 28x406, cords torn at the bead
Exposure
100, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:56:59.

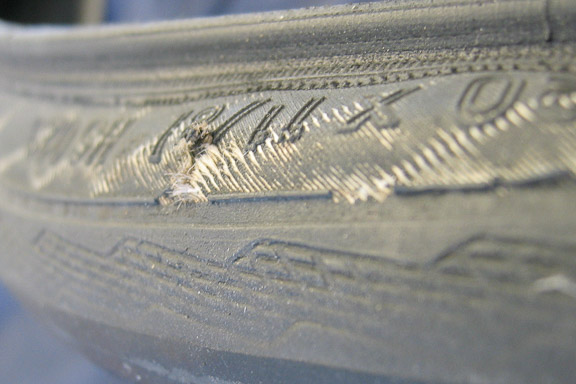

Continental Grand Prix 28x406, sidewall fraying This is a common failure of Continental tires. Although this tire did not burst at one of these fraying locations, some cyclists have reported sudden blowouts at these weakened spots.
Continental Grand Prix 28x406, sidewall fraying
Title
Continental Grand Prix 28x406, sidewall fraying
Exposure
100, ⅛ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:54:59.
Continental Grand Prix, 28x406, frayed sidewall cords No failure here, but these can fail eventually. Usually caused by riding over rocks or railroad ballast gravel.
Continental Grand Prix, 28x406, frayed sidewall cords
Title
Continental Grand Prix, 28x406, frayed sidewall cords
Exposure
100, ¹⁄₆₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:54:11.
Primo Racer 1.5x559, worn out The cord pattern is becoming visible through the last of the rubber. The casing has several punctures, too.
Primo Racer 1.5x559, worn out
Title
Primo Racer 1.5x559, worn out
Exposure
100, ¹⁄₄₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:53:01.
Primo Racer 1.5x559, worn to the cords Cords threads are becoming visible.
Primo Racer 1.5x559, worn to the cords
Title
Primo Racer 1.5x559, worn to the cords
Exposure
100, ¹⁄₄₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:52:26.
Avocet City Slicker 1.5x559, large puncture This puncture caused a blowout.
Avocet City Slicker 1.5x559, large puncture
Title
Avocet City Slicker 1.5x559, large puncture
Exposure
100, ¹⁄₂₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:51:02.
Primo Comet tire 1.25x559, casing torn at the bead This tear may have occurred when I used a steel tire iron to mount or remove the tire on a very tight-fitting rim. I discarded the tire because it started bulging at this tear.
Primo Comet tire 1.25x559, casing torn at the bead
Title
Primo Comet tire 1.25x559, casing torn at the bead
Exposure
100, ¹⁄₆₀ sec at f/7.1
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on February 12, 2006 at 14:47:52.
Dropout minus derailer hanger
Dropout minus derailer hanger
Title
Dropout minus derailer hanger
Exposure
100, ¹⁄₅₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on December 17, 2005 at 15:04:25.

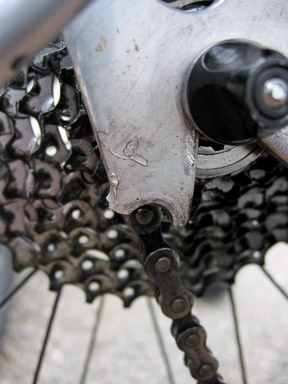

The derailer hanger broke off.
The derailer hanger broke off.
Title
The derailer hanger broke off.
Exposure
100, ¹⁄₆₀ sec at f/2.8
Camera and Lens
Canon Canon PowerShot S410 7.4-22.2 mm
Datetime
Image captured on December 17, 2005 at 15:04:11.
Cracks on tab between the two bottom tubes on Gold Rush These tabs aren't structural, but due to the movement of the two tubes, fatigue cracks can develop here.
Cracks on tab between the two bottom tubes on Gold Rush
Title
Cracks on tab between the two bottom tubes on Gold Rush
Exposure
3, ¹⁄₁₂₅ sec at f/8.0
Camera and Lens
Canon Canon PowerShot S330 0 mm
Datetime
Image captured on August 31, 2002 at 09:52:34.
Crack on tab between the two bottom tubes on Gold Rush These tabs aren't structural, but due to the movement of the two tubes, fatigue cracks can develop here.
Crack on tab between the two bottom tubes on Gold Rush
Title
Crack on tab between the two bottom tubes on Gold Rush
Exposure
3, ¹⁄₁₆₀ sec at f/4.7
Camera and Lens
Canon Canon PowerShot S330
Datetime
Image captured on August 31, 2002 at 09:50:38.
Ritchey fork break. "Fork had been creaking for some time, then suddenly felt really loose when climbing out of the saddle." Fortunately, no crash. Boris tells me the fork was new in 1987 (30 years old) and the bike has at least 12000 miles. Photo courtesy of Boris Foelsch.
